1.Description

Glass ball sprinklers are the key component of sprinkler systems. It is used to sense the fire and activate the sprinkler system by bursting the glass ball to achieve fire control or fire suppression. Glass ball sprinklers are widely used to protect light and medium-level dangerous places such as hotels, commercial buildings, warehouses, garages, office buildings, hospitals, theaters, garment factories, production workshops, etc., as well as buildings with serious dangerous levels.

Product standard: GB5135.1 "Automatic sprinkler system Part 1: Sprinkler"

Design Specification: GB50084 "Design Specification for Automatic Sprinkler System"

Acceptance specification: GB50261 "Code for construction and acceptance of automatic sprinkler system"

2. Characteristics

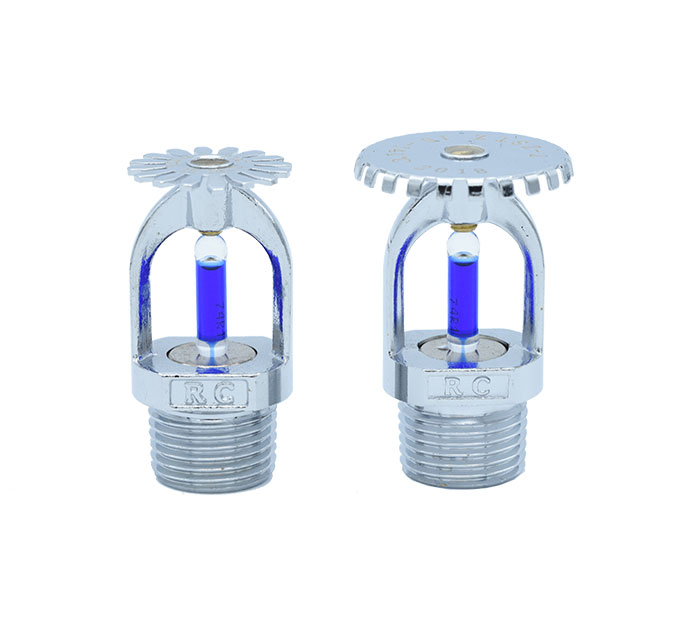

(1) This series of glass ball sprinklers are assembled from copper alloy frames, glass balls, seals, glass ball holders, screws and splash plates. Compact structure and exquisite appearance.

(2) The nozzle frame is precision forged with high-strength copper alloy, which has high strength and good corrosion resistance.

(3) The temperature sensitive element (glass ball) adopts high quality products at home and abroad, the glass ball has high strength, reliable action and fast reaction speed.

3. Technical parameters

(1) Nominal diameter: Φ15mm, Φ20mm; interface thread: R21/2″, R23/4″

(2) Flow coefficient: Φ15mm K=80; Φ20mm K=115

(3) Rated working pressure: 1.2MPa

(4) Installation method: drooping, erect, horizontal side wall

(5) Sensitivity: Φ5mm (special response)

(6) Nozzle rated operating temperature and color standard:

• T-ZSTX 15-68℃（φ5mmGlass ball）
• T-ZSTZ 15-68℃（φ5mmGlass ball）
• RC T-ZST 15-79℃（φ5mmGlass ball）
• T-ZSTBS 15-68℃（φ5mmGlass ball）
• T-ZSTX 15-68℃（φ5mmGlass ball）
• T-ZSTX 15-93℃（φ5mmGlass ball）
• T-ZSTZ 15-68℃（φ5mmGlass ball）
• T-ZSTZ 15-93℃（φ5mmGlass ball）
• T-ZSTBS 20-68℃（φ5mmGlass ball）
• T-ZSTX 20-68℃（φ5mmGlass ball）
• T-ZSTZ 20-68℃（φ5mmGlass ball）
• T-ZSTBS(80.115)-68°C Q5 report
• T-ZSTX 15-68℃(φ5mm glass ball) YD
• T-ZSTX 80-68°C Q5 change confirmation inspection report
• T-ZSTZ 15-68°C (φ5mm glass ball) YD
• T-ZSTZ(80.115)-68°C Q5 report
