1.Description

The water flow indicator is an integral part of the automatic sprinkler system. The flow of water in the spray pipe network is used to push the blade, and the micro switch is activated to convert the water flow signal into an electrical signal, and is connected with the controller to activate the automatic fire alarm system. It can be used to detect the operation of the automatic sprinkler system and to determine the area where the fire occurred. Suitable for wet, dry, recirculating and closed automatic water spray-foam systems.

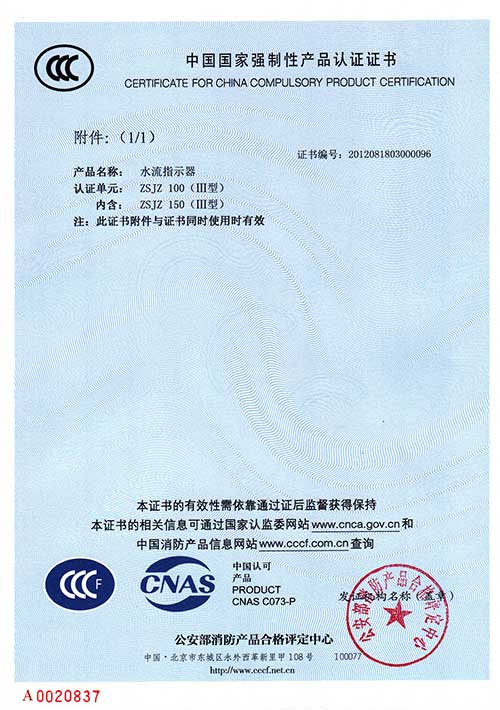

Product standard: GB5135.7 "Automatic sprinkler system Part 7: Water flow indicator"

Design Specification: GB50084 "Design Specification for Automatic Sprinkler System"

Acceptance specification: GB50261 "Code for construction and acceptance of automatic sprinkler system"

2.technical parameters

(1) Rated working pressure: 1.2MPa

(2) Sealing test pressure: 2.4MPa

(3) Connection form: flange type

(4) Alarm flow range: 15L/min~37.5L/min

(5) Switching capacity: AC220V 1A DC24V 0.5A

(6) Environmental conditions for use: 4 ° C ~ 50 ° C

(7) Wiring method: red line - power line, blue line - signal line

3、Specifications and their appearance and main connection dimensions

• Flange flow indicator DN50
• Flange flow indicator DN65
• Flange flow indicator DN80
• Flange flow indicator DN100
• Flange flow indicator DN125
• Flange flow indicator DN150
• Flange flow indicator DN200
